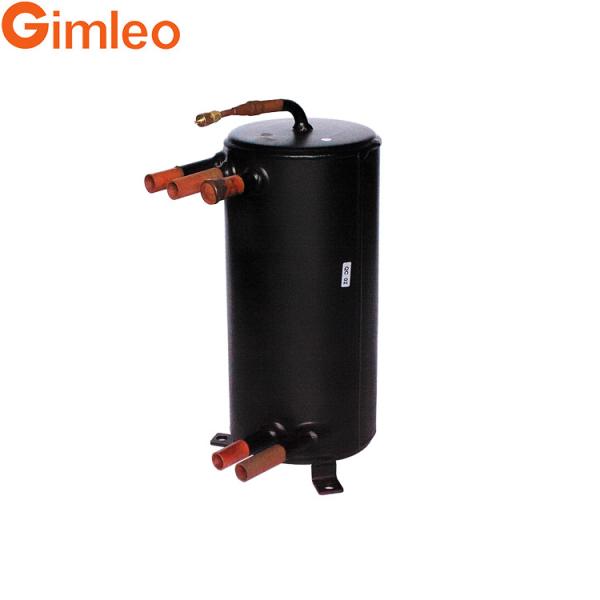

Custom High Compact Helix Structure Tank Heat Exchanger Machine with 16 KW Capacity GAH06-CMF
Description:
Introducing the GAH06-CMF, a state-of-the-art tank heat exchanger machine from Gimleo, designed to deliver unparalleled efficiency with its custom high compact helix structure. Boasting a powerful 16 kW capacity, this innovative heat exchanger is ideal for a wide array of industrial and commercial water heating applications.
The GAH06-CMF stands out with its unique helix design, which maximizes heat transfer and minimizes energy consumption, resulting in significantly reduced operational costs. Its robust construction using premium materials ensures durability and long-lasting performance, even under the most demanding conditions. The compact design not only saves space but also simplifies installation and maintenance, making it an excellent choice for modern facilities.
This heat exchanger is engineered to meet the highest standards of efficiency and reliability, providing consistent thermal management across various applications. Whether you're upgrading existing systems or implementing new solutions, the GAH06-CMF offers the perfect blend of innovation and performance.
Quick Detail:
1. Innovative Helix Structure: Unique design maximizes heat transfer efficiency.
2. 16 KW Capacity: Ensures powerful and effective thermal management.
3. Premium Construction: Durable materials guarantee long-term performance.
4. Energy Efficient: Reduces energy consumption and operational costs.
5. Compact Design: Space-saving structure simplifies installation and maintenance.
Specification:
Common Version Heat Exchanger
| Model | Heating capacity1(KW) | Heating capacity2(KW) | Cooling capacity(KW) | Water flow(m3/h) | Height(mm) | Spacing of water connection (mm) | Refrigerant inlet(mm) | Refrigerant outlet(mm) |
| GAH01-CMF/ GBH01-CMF | 3.5 | 2.5 | 2.5 | 0.6 | 221 | 140 | 12.7 | 9.52 |
| GAH02-CMF/ GBH02-CMF | 5 | 3.5 | 3.5 | 0.86 | 261 | 180 | 12.7 | 9.52 |
| GAH03-CMF/ GBH03-CMF | 7 | 5 | 5 | 1.2 | 331 | 250 | 12.7 | 9.52 |
| GAH04-CMF/ GBH04-CMF | 10 | 7.5 | 7.5 | 1.72 | 391 | 310 | 15.88 | 9.52 |
| GAH05-CMF/ GBH05-CMF | 13 | 9.5 | 9.5 | 2.24 | 308 | 220 | 19.05 | 12.7 |
| GAH06-CMF/ GBH06-CMF | 16 | 12 | 12 | 2.75 | 353 | 265 | 19.05 | 12.7 |
| GAH07-CMF/ GBH07-CMF | 18 | 14 | 14 | 3.5 | 396 | 308 | 19.05 | 12.7 |
| GAH08-CMF/ GBH08-CMF | 22 | 16 | 16 | 3.7 | 440 | 352 | 19.05 | 12.7 |
| GAL10-CMF/ GBL10-CMF | 33 | 13 | 23 | 5.7 | 467 | 360 | 28 | 12.7 |
| GAL12-CMF/ GBL12-CMF | 38 | 28 | 28 | 6.5 | 507 | 400 | 28 | 12.7 |
| GAS15-CMF/ GBS15-CMF | 45 | 35 | 35 | 7.8 | 565 | 460 | 28 | 19.05 |
Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃
Company Introduction:
Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.
Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.
Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.
We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.
After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
