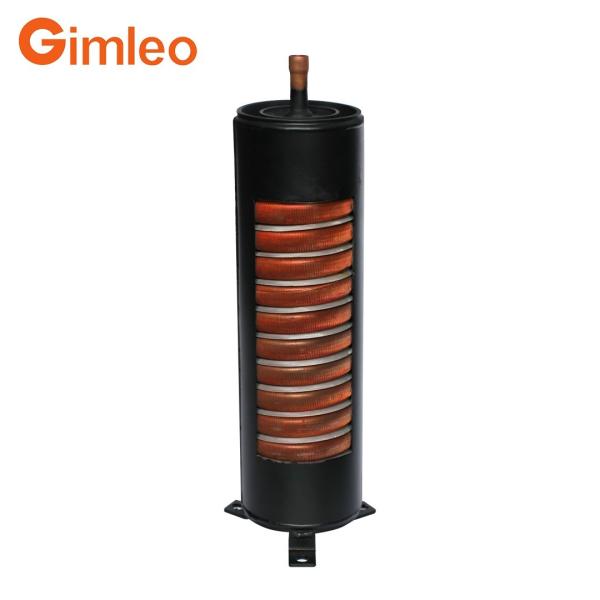

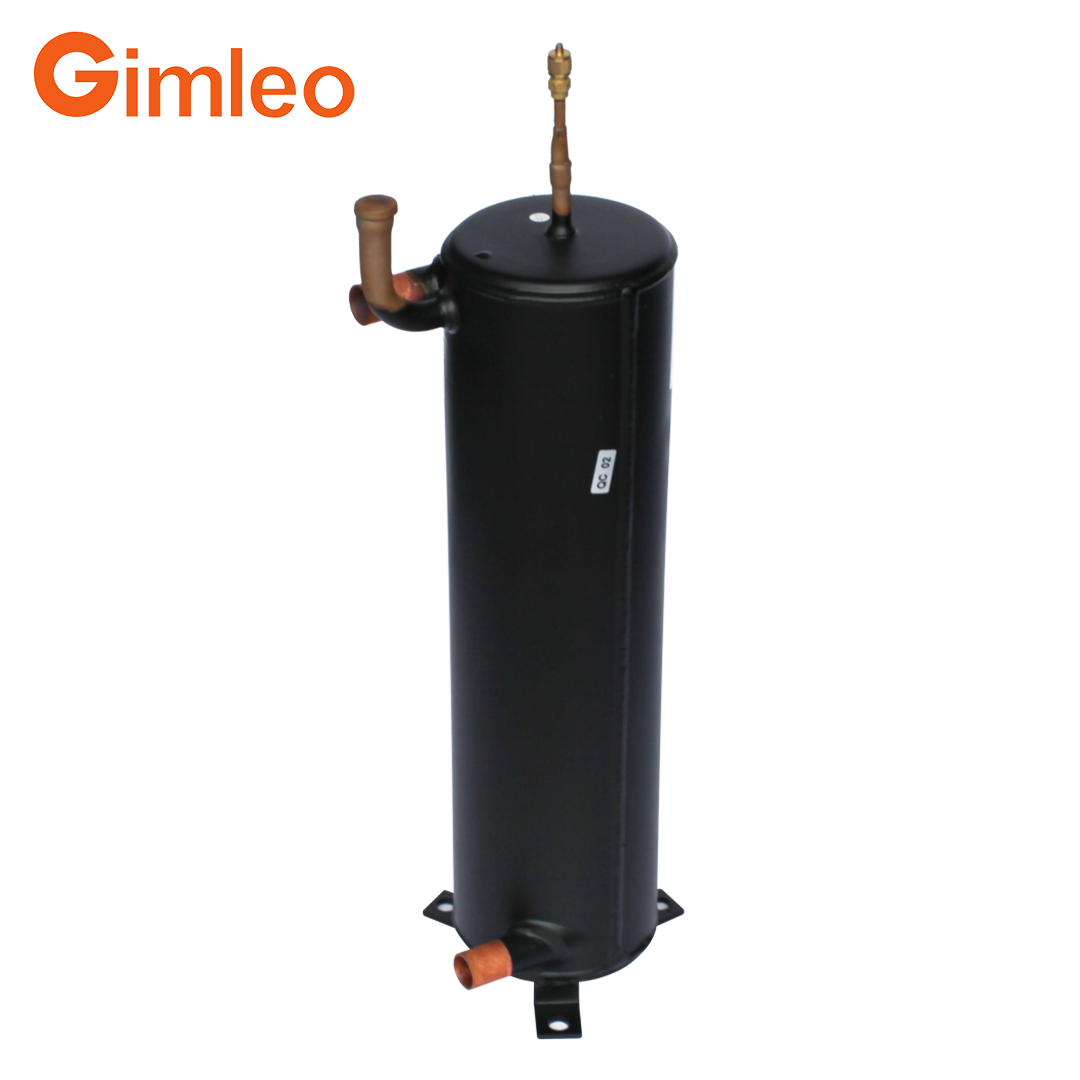

Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application

Name: Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application
Brand: Gimleo
Price: 80.00 USD

China Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application factory

Applicable Industries : Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Not Available

Machinery Test Report : Not Available

Warranty of core components : 1 Year

Core Components : /

Condition : New

Place of Origin : Guangdong, China

Brand Name : Gimleo

Structure : Tube Heat Exchanger

Liquid Flow Rate : 1.2m³/h

Maximum Working Pressure : 5.0MPa

Weight : 9 KG

Dimension(L*W*H) : Multiple choice

Warranty : 1 Year

Working Temperature Range : -50~150℃

Key Selling Points : Competitive Price

Product Name : Round aluminium high efficient heat exchanger

Heating Capacity : 5KW

Cooling capacity : 3.5KW

Tube material : Single copper Tube

Shell material : high quality steel

Water Connection : 19.05mm

Application : Condenser,Evaporator

Certification : ISO9001,RoHS 2.0,REACH,CE and Patents

Packaging Details : Plywood Packing Crates and Boxes

Supply Ability : 1500 Unit/Units per Month

Price : $80.00/units 1-49 units

Contact Now

Products Description

Energy Conservation Single Copper Tube Heat Exchanger RAH02 for Evaporator Application

Product name	High Efficiency Tube -in-shell Heat Exchanger
Type	R series heat exchanger
Model number	RAH02-CMF
Heating capacity	5kw
Cooling capacity	3.5kw
Water flow	1.2m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

R series product,as a complete self-developed heat transfer enhanced heat exchanger,with optimized inner structure,could make refrigerant and water do the heat transferring throughly.R series is 20% up compared with regular type in heating performance while 15% in price

Product Features :

• Self-patented technology.
• Optimized structure, the medium flows more smoothly and enhance heat-transferring effect.
• Heat-transferring rate increase 20% compared with traditional ones.

• The price is lower then the common heat exchanger which have same heat transfer efficiency.

Product material :

[ The heat transfer tube ]:Copper T2/TP2, and Nickel-Copper 90/10, copper Bfe 10-1-1, BFe30-1-1 for option.

[ Shell ]:High quality steel

Details Images

Product Application

Product Categories

Company Profile

Company Introduction

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
